Fully Automatic Coating Machine Line

This is the system solutions for automatic coating machines, fully automatic coating  line, works graphite, composite and metal plates.It is widely used in LED industry, driving power supply industry, communication industry, computer motherboard, automation industry, electronics, welding machine industry, automotive electronics industry, smart meter industry and so on. For example, it is applied to PCBA surface triple-proof coating, dyke process, applying anti-solder adhesive, DIP component reinforcement, etc.

 ● Complete production automation, complete coating automated production line solutions.

 ● Customized coating line combinations are available upon request.

 ● Curing ovens: UV, infrared optional.

PCBA board double-sided coating UV/heat curing assembly line reflow line：

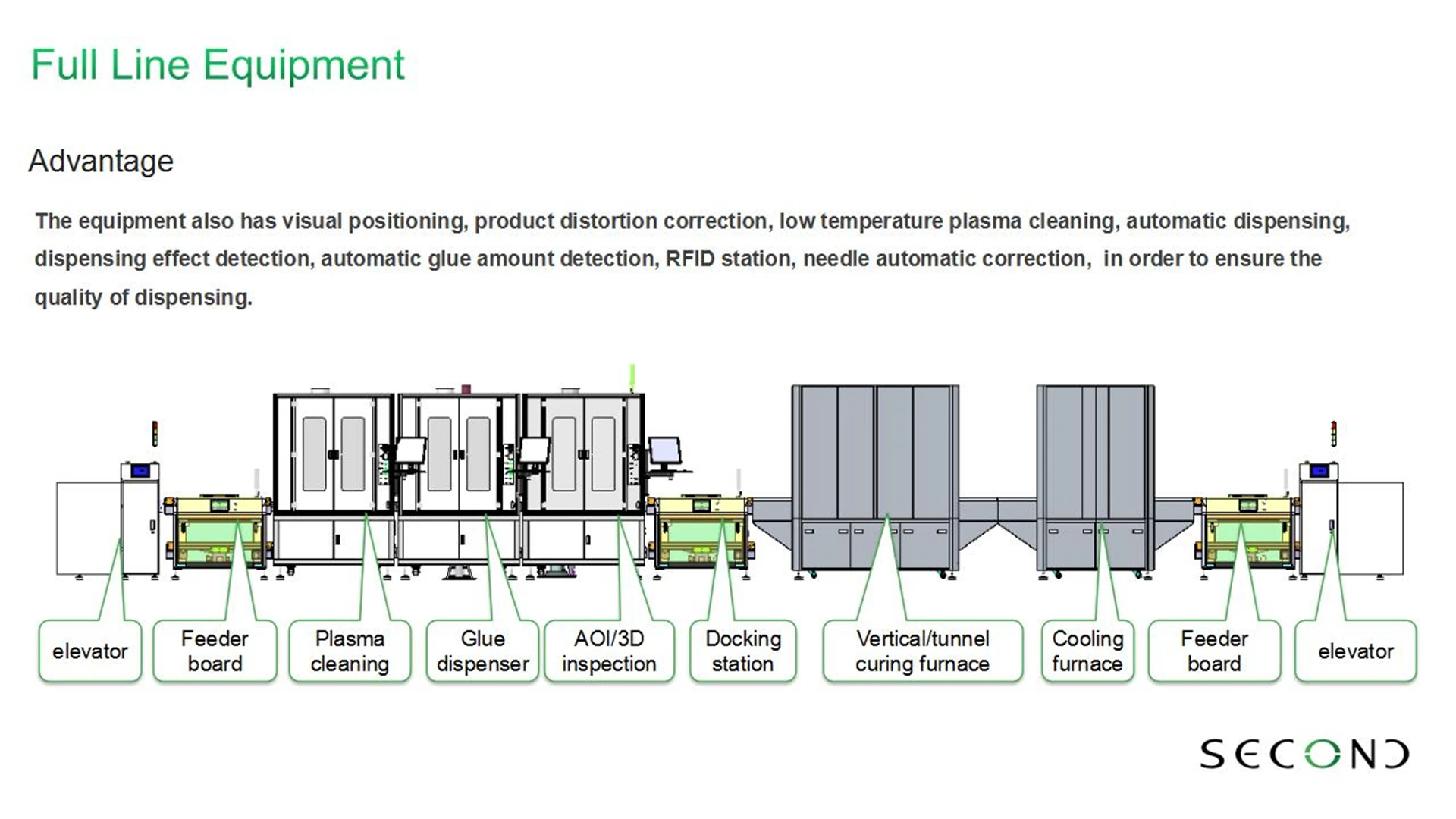

Our solution : Auto Lifter+Automatic Splicing Table+Coating Machine+Inspection Splicing Table+UV Curing Oven+Automatic Splicing Table+Automatic Flipper+Coating Machine+Inspection Splicing Table+Infrared Curing Oven+Automatic Lifter

Equipment introduction：

 ● Overall steel motion platform, sturdy frame structure provides a strong guarantee for stable operation.

 ● Adopting servo motor + precision screw module drive, compared with the control system of stepping motor in
the market, it has stable and high-precision motion control effect.

 ● Professional control card and high quality motion configuration system lay a solid foundation for high speed

and high precision operation. Special aluminum alloy rail and stainless steel conveyor chain.
 ● Adopting man-machine operation interface, convenient programming method can greatly reduce

the programming time. The control software is coating software developed independently under Windows7 environment by combining the reguirements of customers in the industry for various coating processes. fast
speed and stable operation. flexible multi-axis control, can realize the complex PCB board of high degree of
spraying.
● Powerful process control ensures high coating quality and consistency. independent coating container drum
and equipped with waste discharge port, effectively reducing the emission of irritating odor.

Device Application:

Household electrical control boards, automotive electronic control boards, military instrumentation circuit boards, computer control boards, industrial equipment control boards, agricultural equipment control boards, battery protection boards, LED control boards, outdoor LED displays, inverter circuit boards, security control boards, motor control boards and so on.

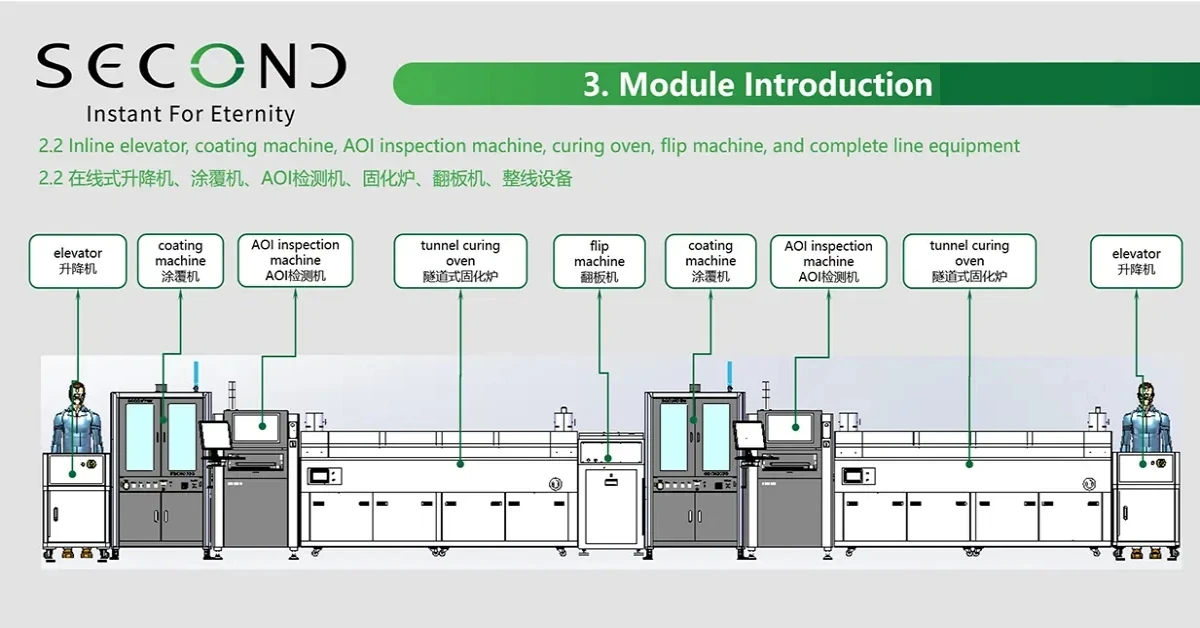

PCBA board double-sided coating UV curing assembly line reflow line:

PCBA board double-sided coating heat curing assembly line reflow line:

Advantages Of Fully Automatic Coating Machines

1. ‌Efficient production‌
Automated operation can quickly complete coating tasks, significantly improve production efficiency, and meet the needs of large-scale production;
The continuous and stable coating process is not limited by manpower, shortens the production cycle and reduces the overall cost;
The intelligent system automatically optimizes parameters such as coating speed and thickness, reducing downtime adjustment time.

2. ‌Precise control and high-quality output‌
The precision control system ensures coating uniformity and thickness accuracy (such as 0.01mm), avoiding the uneven problem of manual coating;
The preset program realizes precise positioning of the coating path and position (such as positioning accuracy 0.02mm), reducing the rework rate;
Programmable parameters support complex pattern coating and enhance the uniqueness of product design.

3. ‌Cost optimization‌
Reduce manual intervention and reduce labor costs;
Precisely control the amount of paint and reduce material waste;
Long-term stability reduces equipment failure rate and maintenance costs.

4. ‌Flexibility and adaptability‌
Supports a variety of coating materials (such as glue, paint, solvent-free coating) and process adjustments to meet the needs of different industries;Can quickly switch production batches to adapt to diverse product sizes and coating requirements.

5. ‌Environmental compliance‌
Reduces excessive use of coatings and volatile emissions, in line with environmental protection requirements;
Some models use solvent-free technology to further reduce the impact on the environment.

6. ‌Standardization and quality control capabilities‌
Automated processes ensure the consistency and repeatability of coating for each batch of products, improving the level of standardization;Reduces human operating errors and significantly improves product qualification rate.

7. ‌Reliability and intelligence‌
The application of advanced materials and technologies ensures long-term and stable operation of equipment;
Humanized software systems simplify operations and reduce the threshold for technical learning.
